High-Volume Precision Swiss CNC Machining for Micro & Complex Parts
High-repeatability Swiss CNC machining for small-diameter shafts, pins, connectors, fittings and micro precision components.
Diameter Range 0.5–32 mm
Ideal for Long and Slender Parts
±0.01 mm Typical Precision
Critical Tolerance Reviewed Before Production
Prototype to Repeat Production
Free Engineering Review Before Quote
Small-Diameter
0.5–32 mm
Slender Parts
Reduced deflection
Repeatability
Batch stability
Why Swiss CNC for Small Precision Parts?
Swiss CNC supports bar stock close to the cutting tool, helping reduce deflection during machining.
Better Support
Guide bushing support helps stabilize long and slender parts.
High Concentricity
Suitable for micro shafts, pins and precision connectors.
Batch Repeatability
Stable process after setup for repeat production.
Reduced Secondary Work
Turning, threading, grooving, drilling and cross holes in one setup.
Surface Quality
Controlled cutting and deburring for small precision parts.
Cost Efficiency
Efficient for small batches and repeat production.
Ultra Precise Concentricity
Consistent Batch Repeatability
Stable Machining for Slender Parts
Premium Surface Finish

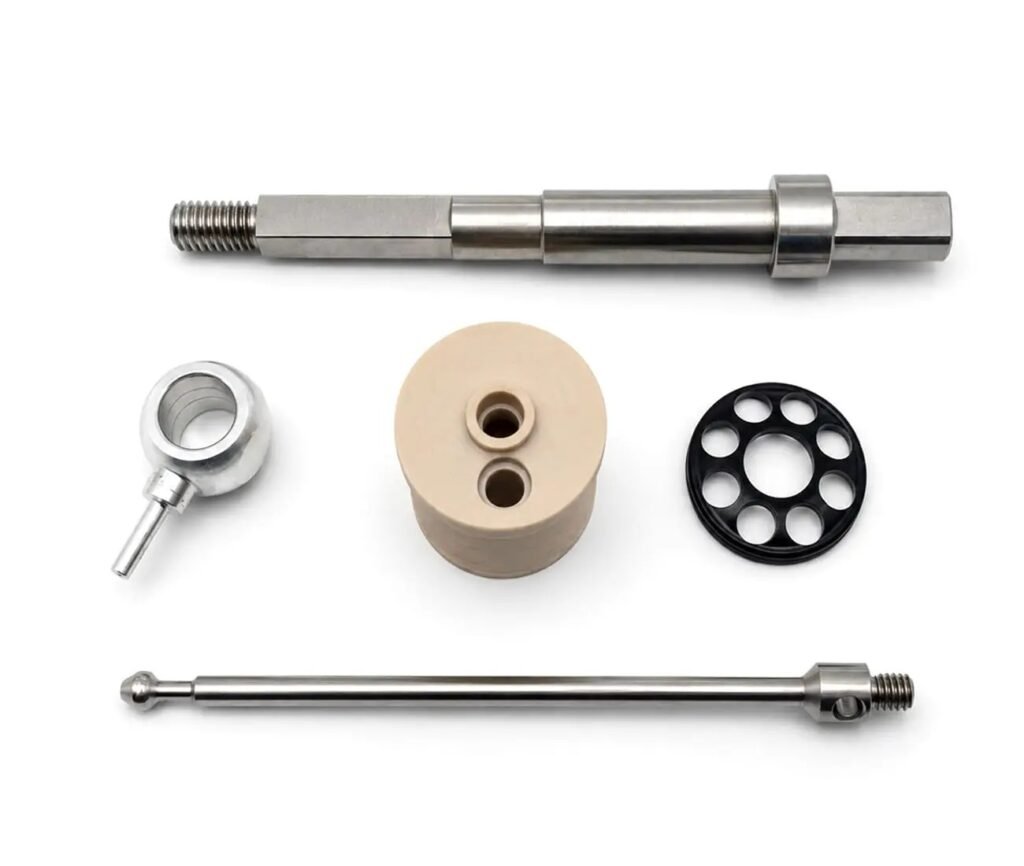

Swiss CNC Parts We Manufacture
Miniature precision turned components for medical, electronics, automotive, robotics and industrial applications.
Precision Pins
Locating pins, dowel pins, medical pins.
Micro Shafts
Motor shafts, sensor shafts, miniature shafts.
Connectors
Brass connectors, stainless connectors and terminals.

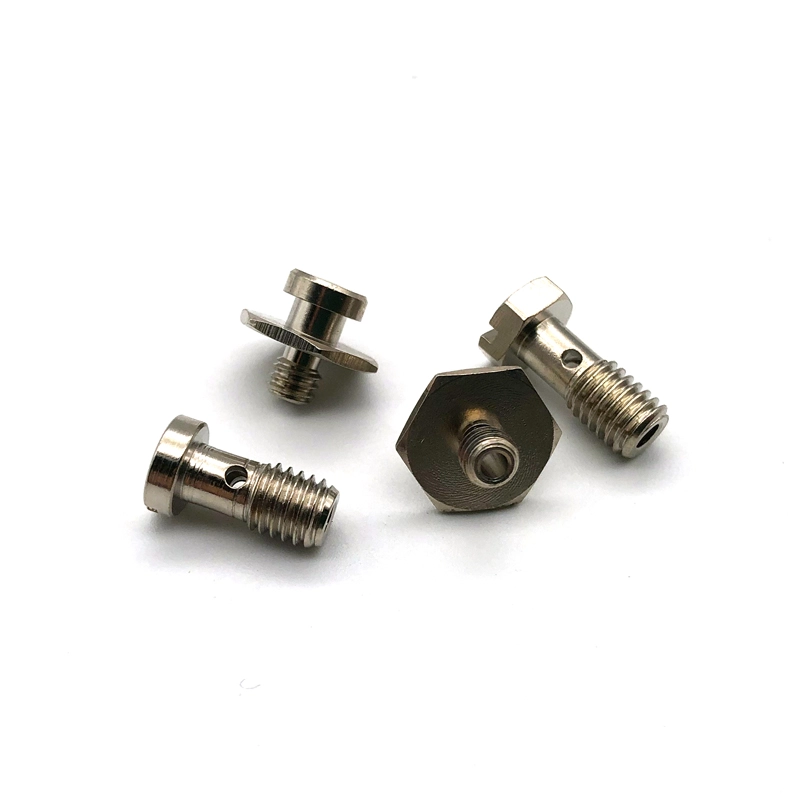

Threaded Fittings
Small fittings, adapters and threaded inserts.
Medical Components
Small stainless steel and plastic precision parts.
Electronic Terminals
Terminals, sensor parts and micro fasteners.
Swiss CNC Capabilities
Full technical specifications for miniature precision Swiss turned components.
| Item | Capability Details |
|---|---|
| Diameter Range | 0.5–32 mm |
| Suitable Parts | Pins, micro shafts, fittings, terminals, connectors |
| Materials | Stainless steel, aluminum, brass, titanium, POM, PEEK |
| Features | Turning, threading, grooving, drilling, cross holes, knurling if available |
| Tolerance | ±0.01 mm typical; tighter tolerance after review |
| Best For | Small-diameter, long, slender and repeat-production components |
| Inspection | Micrometer, pin gauge, thread gauge, optical measurement, CMM when required |
Swiss CNC vs CNC Turning
choose the right process before quotation.
Use Swiss CNC When
- Parts are long and slender
- Diameter is small, usually 0.5–32 mm
- Concentricity and repeatability are critical
- Multiple operations are needed in one setup
- Typical parts: pins, micro shafts, terminals, connectors
Use CNC Turning When
- Parts are short or medium length
- Diameter is medium or larger
- Geometry is not too slender
- Features are mainly OD, ID, thread and groove
- Typical parts: bushings, sleeves, spacers, standard fittings
Best for Prototype Validation and Repeat Production
Swiss CNC machining is especially cost-effective for small precision turned parts that require stable repeatability after process setup. Scintra support prototype validation, small batches and repeat production for long-term supply programs. |
Prototype Sampling
Small Trial Batches
Mass Repeat Production
Engineering Review for Swiss CNC Parts
Before quotation, our engineers review diameter, length-to-diameter ratio, concentricity, thread standard, cross holes, burr control, surface finish and inspection method.
Diameter + Length Ratio
Confirm whether Swiss CNC is the right process.
Concentricity
Review datums, setup and inspection method.
Threads + Cross Holes
Check tool access and thread standard.
Burr Control
Important for medical, electronics and assembly parts.
Surface Finish
Confirm functional and cosmetic surface needs.

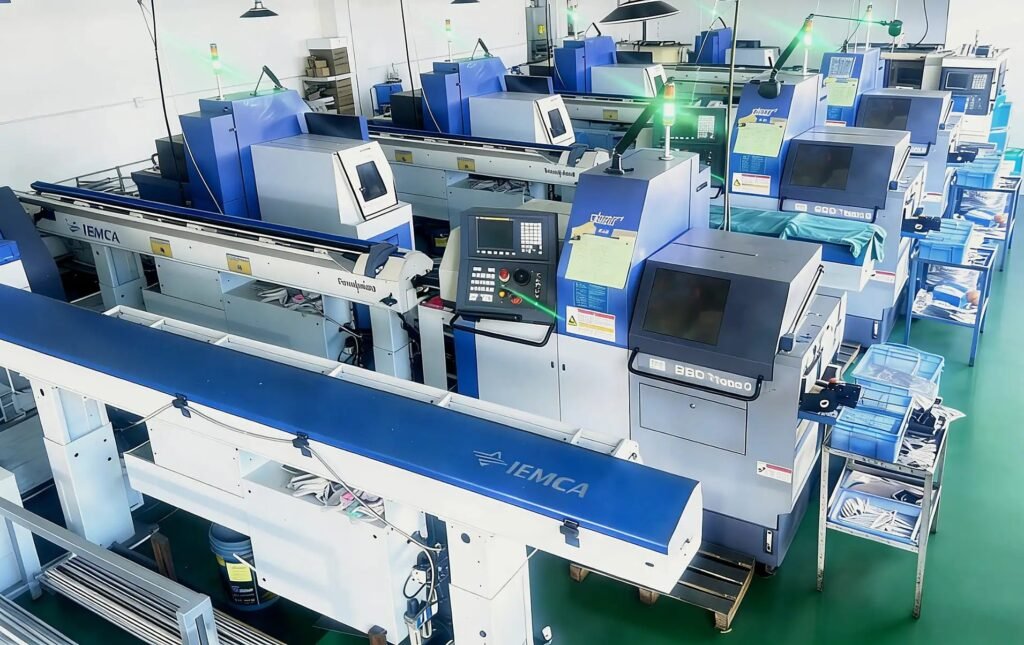

Swiss CNC Equipment and Process Control
Our Swiss CNC process supports guide-bushing machining, bar feeding, live tooling, cross drilling and repeat production for small precision parts.
Guide Bushing Support
Helps reduce deflection for long, slender parts.
Live Tooling
Supports cross holes, flats and secondary features.
Process Repeatability
Stable setup supports long-term supply programs.
Batch Consistency
Supports repeat orders and production runs.
Precision and Quality Control of Swiss CNC Parts
Dimensional checks, concentricity review, thread inspection and report support for critical precision parts.
Dimensional Inspection
Micrometer, caliper and pin gauge checks.
Thread Inspection
Thread gauge and plug gauge verification.
Concentricity Review
Inspection method confirmed by geometry.
Quality Documents
Inspection reports and material certificates

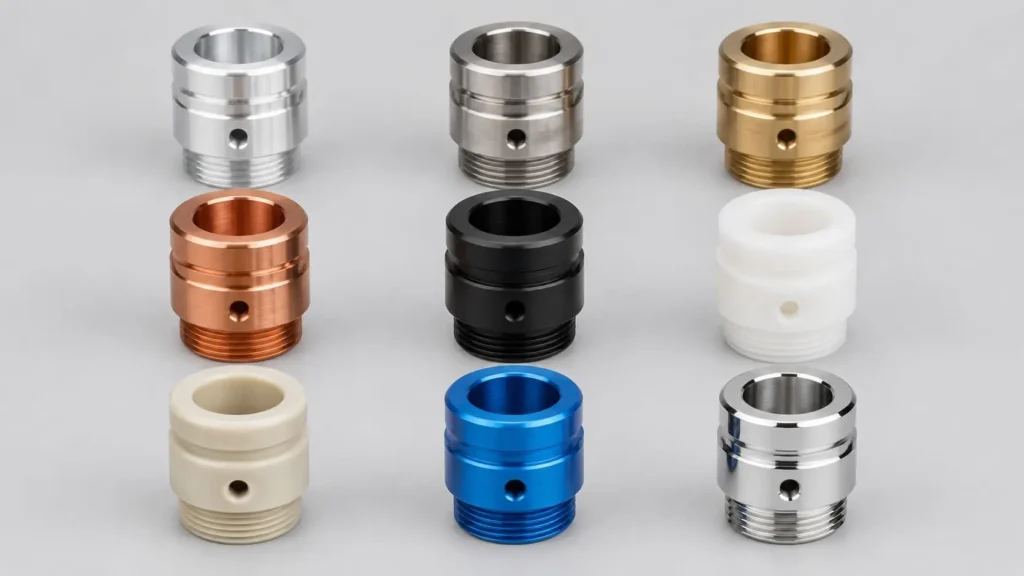

Materials and Finishes for Swiss CNC Parts
Support for common metals, engineering plastics, and functional or cosmetic finishes.
Stainless Steel
Precision pins, shafts and medical-related parts.
Aluminum
Lightweight connectors, spacers and small fittings.
Brass & Copper
Electrical terminals, connectors and fittings.
Titanium
Special precision parts after review.
Engineering Plastics
POM, PEEK and PTFE small turned parts.
Finishes
Passivation, plating, black oxide, polishing and deburring.
Why Engineers & Procurement Teams Choose Us
Swiss-Type CNC Expertise
Specialized machines and experienced operators for micro-precision work
China-Based Manufacturing Advantage
Competitive pricing with strong process control and scalable capacity
ISO-Controlled Quality System
Inspection at every critical stage to ensure consistency and reliability
Engineering-Driven Support
Design feedback to improve manufacturability and cost efficiency
Reliable Global Supply
Stable production for long-term programs and repeat orders
Industries We Serve
Industrial Equipment
Precision fittings, shafts, and control components

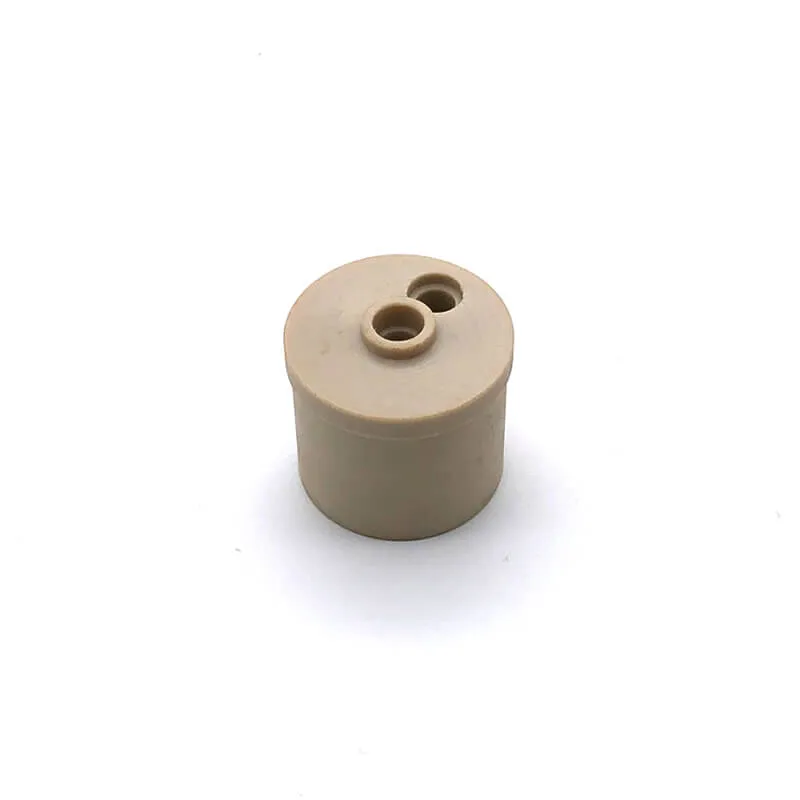

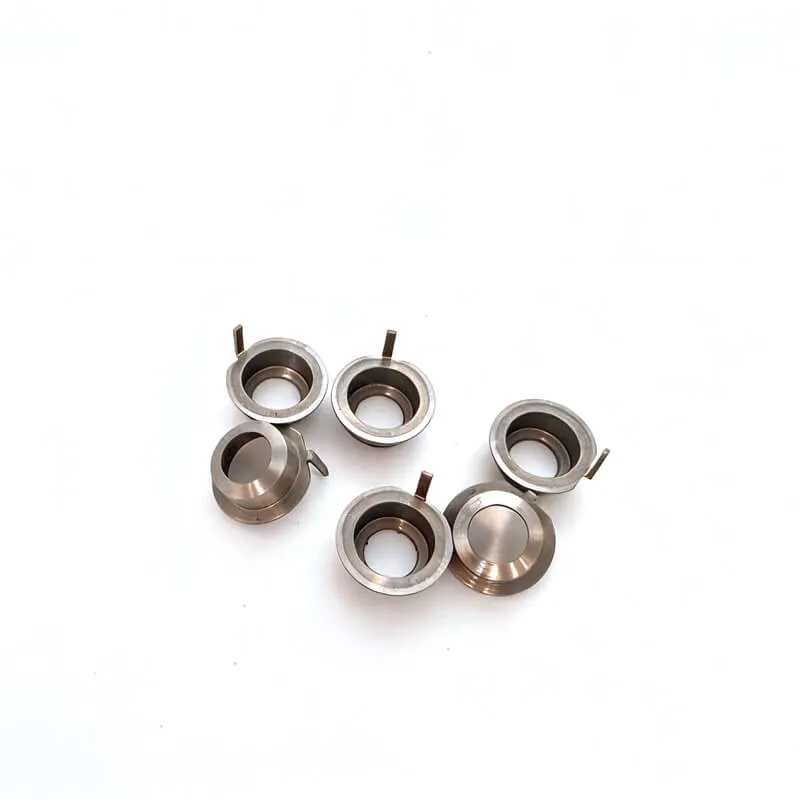

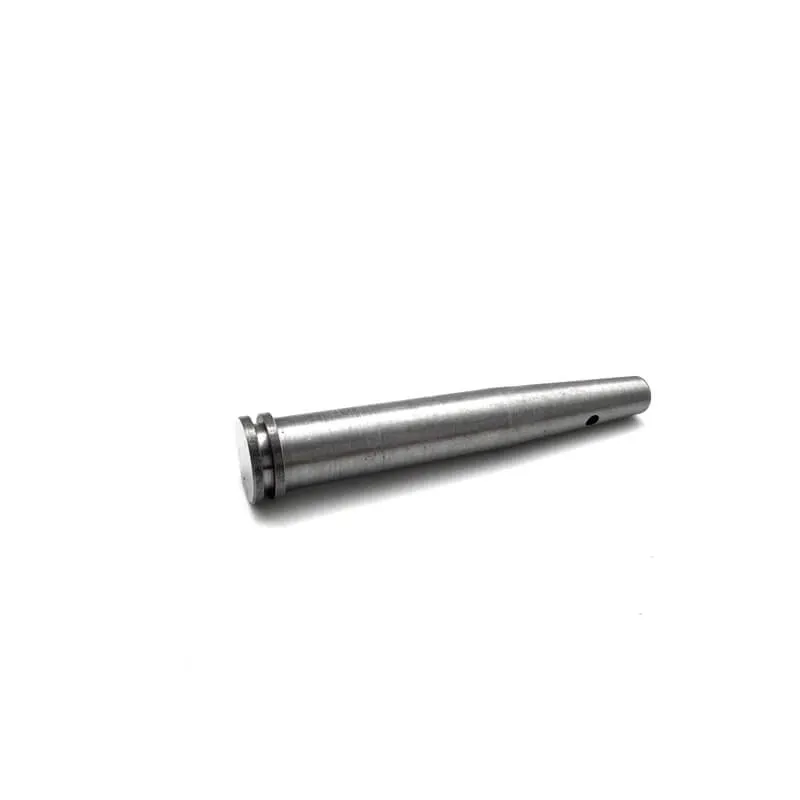

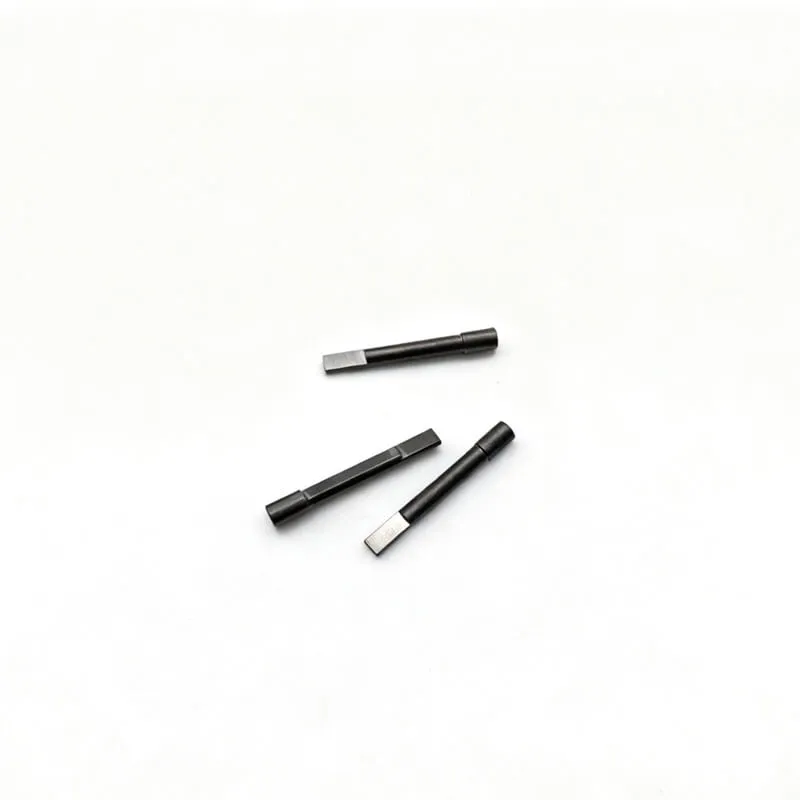

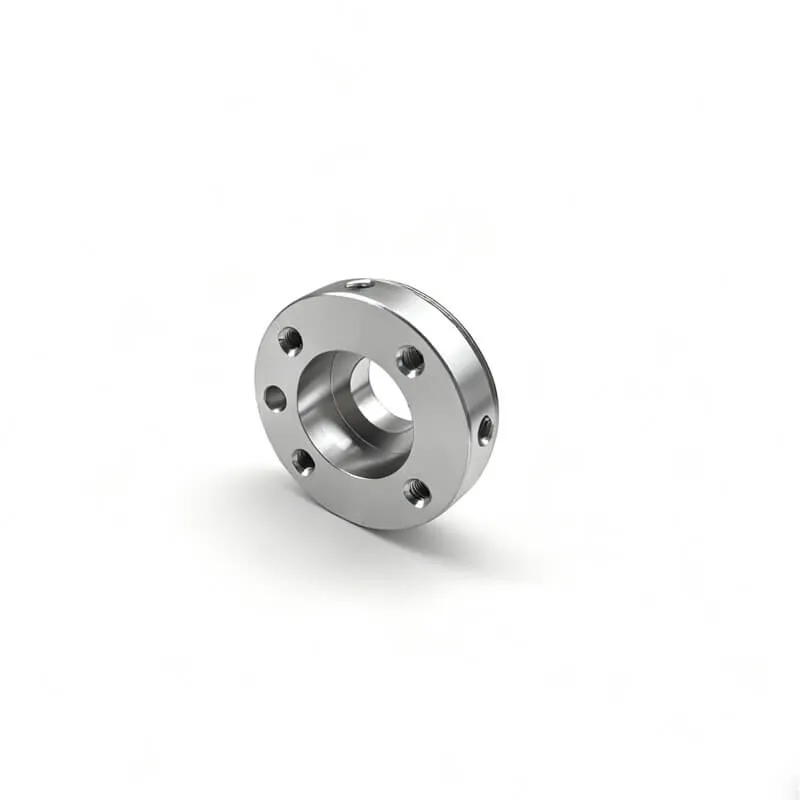

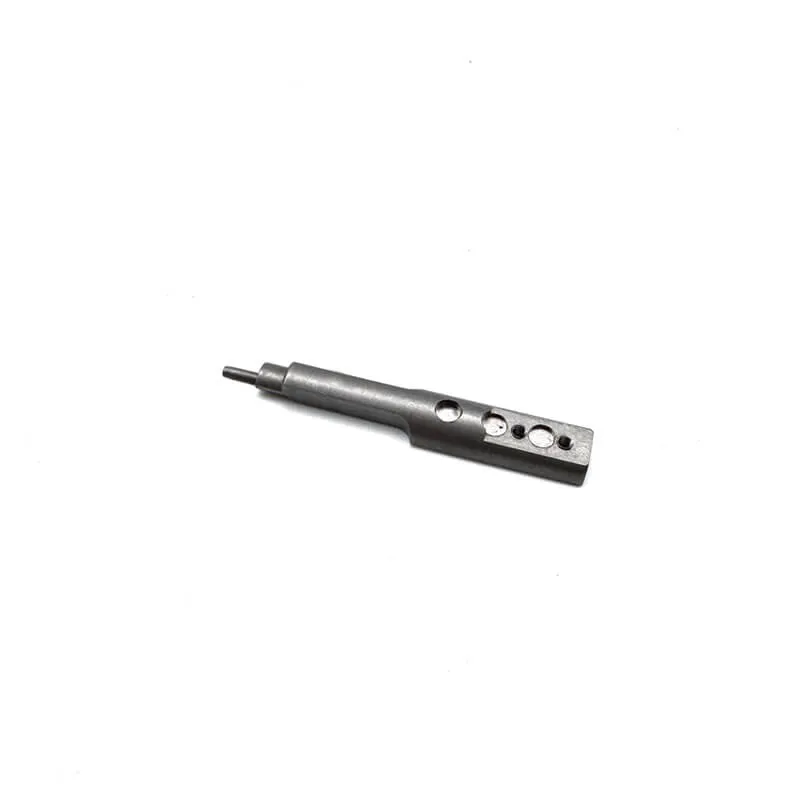

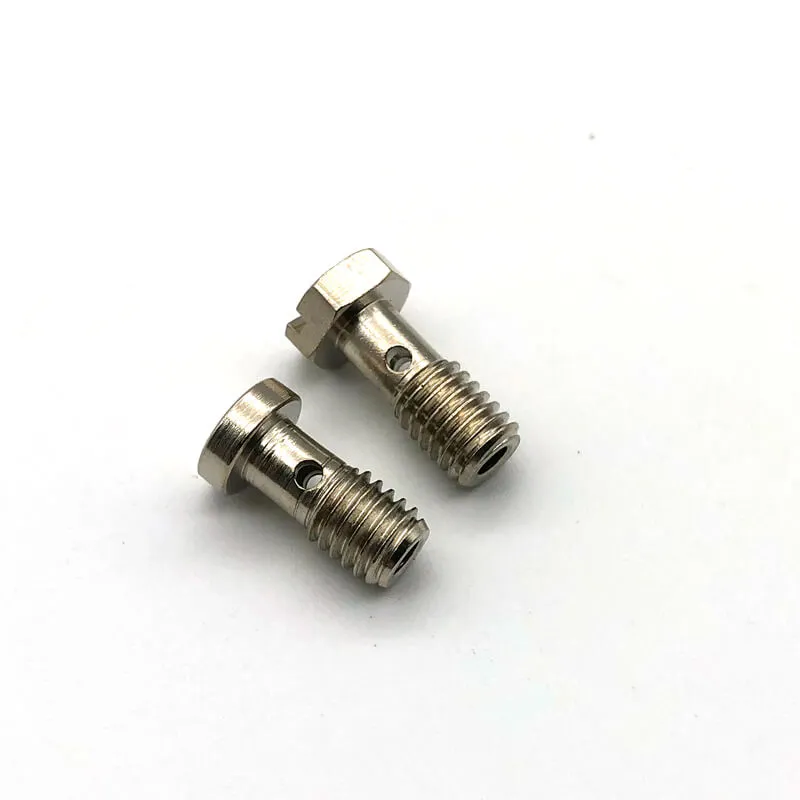

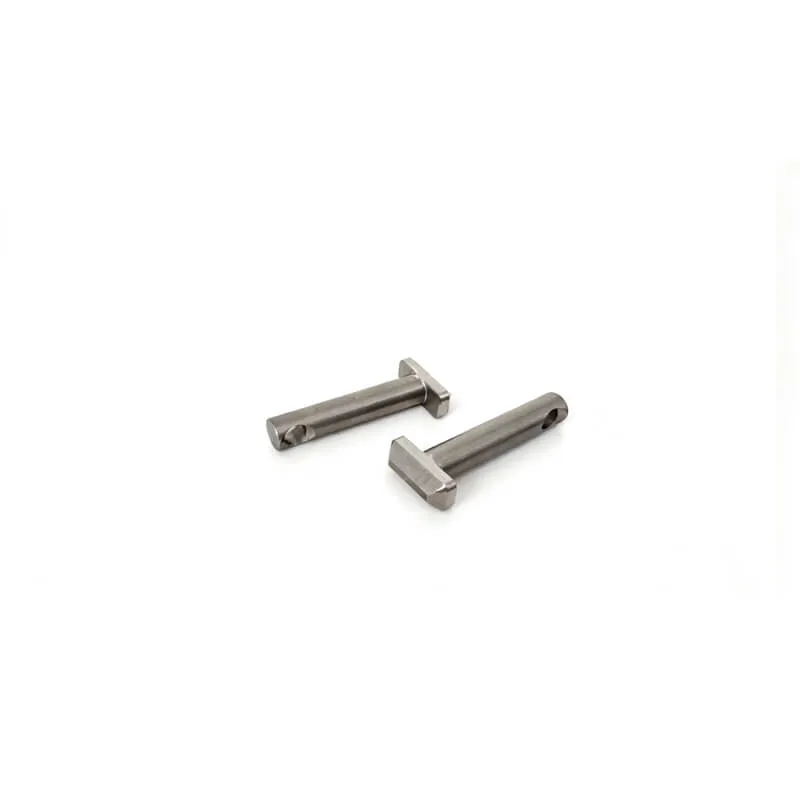

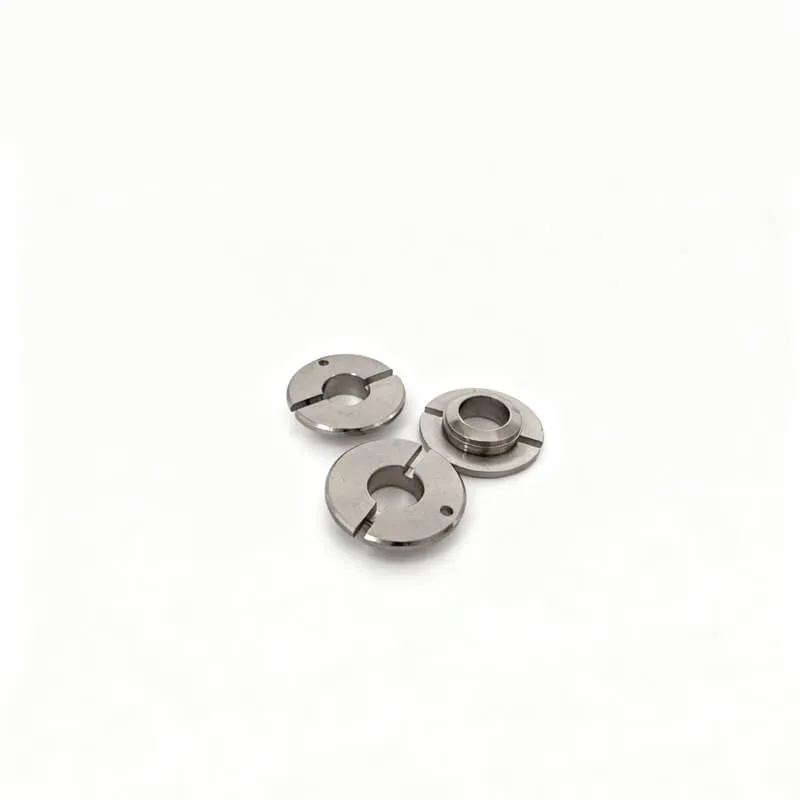

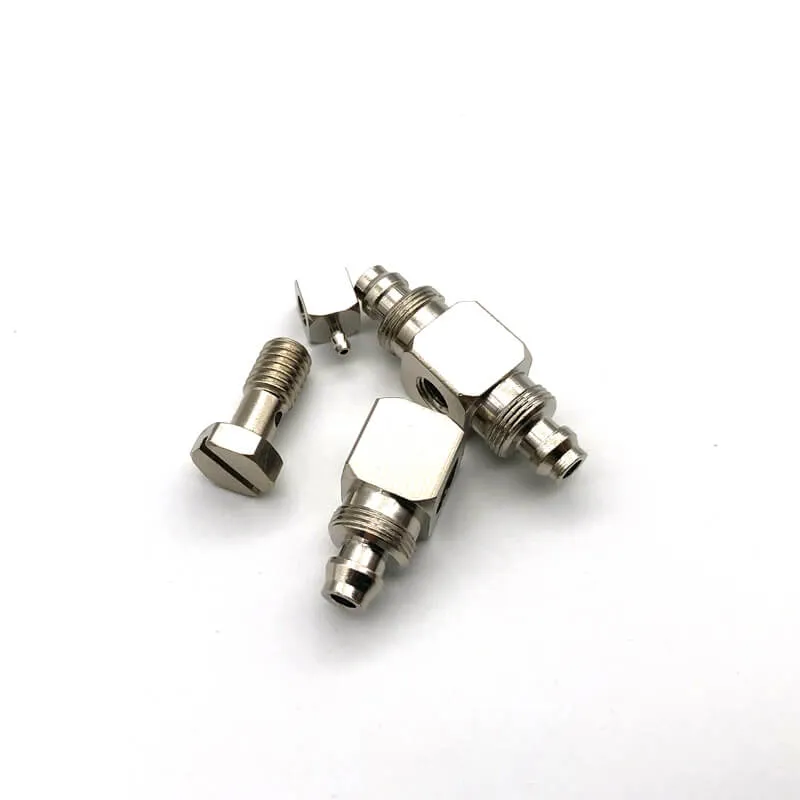

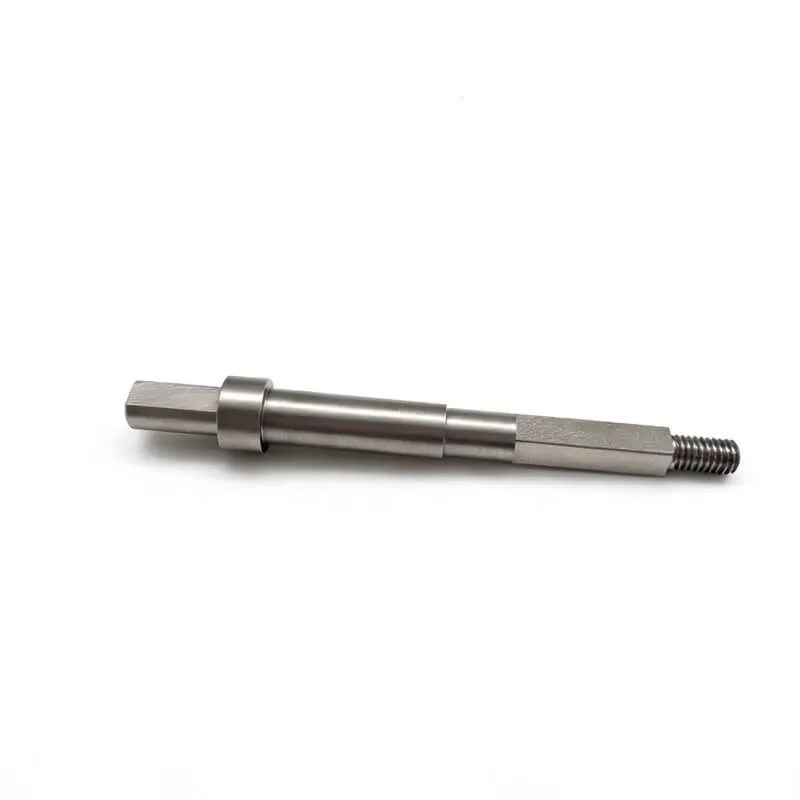

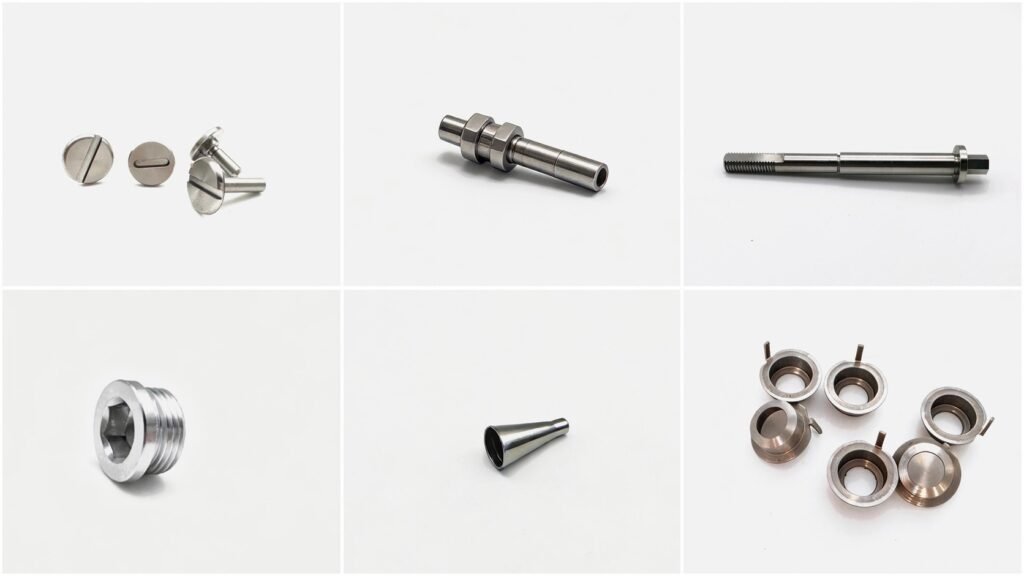

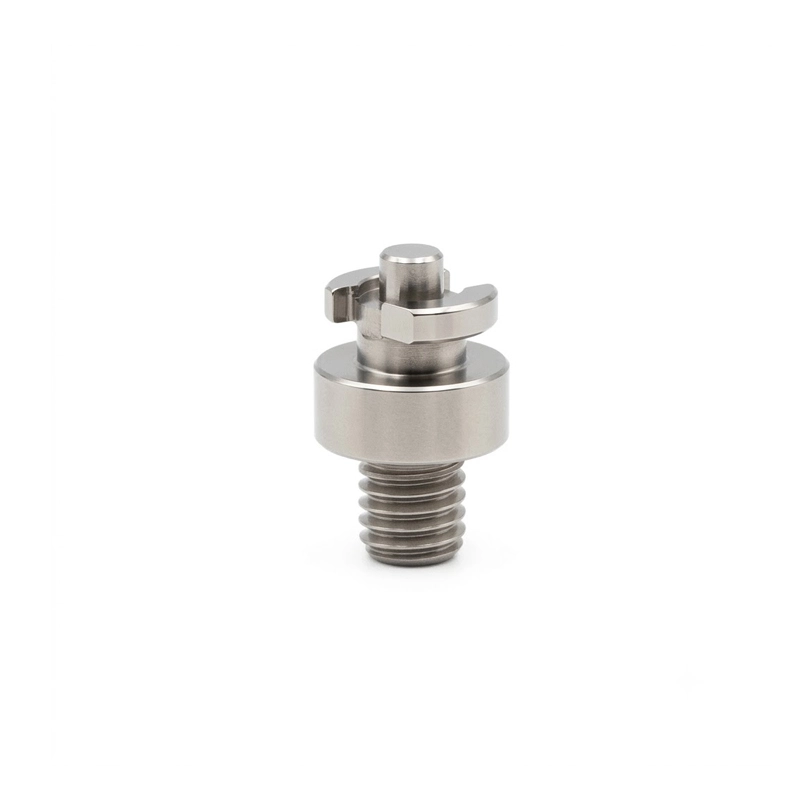

Swiss CNC Parts Gallery
View a selection of Swiss CNC components showcasing our precision, versatility, and expertise across different materials and applications.
Swiss CNC FAQ
What parts are best suited for Swiss CNC machining?
What diameter range can you machine?
Can Swiss CNC hold tight concentricity?
Is Swiss CNC suitable for one-off samples?
How do you ensure quality for precision parts?
What drawings do you need?
Start Your Swiss CNC Project Today
Upload your drawings and requirements — our engineering team will review and respond quickly
